Specifications

ModelRX 9060 XT
Memory Size16GB GDDR6
Memory BUS128-bit
Graphic EngineAMD Radeon™ RX 9060 XT
Bus StandardPCI Express 5.0
OpenGLOpenGL®4.6
Video Memory16GB GDDR6
Engine ClockOC mode (GPU Tweak III): up to 3330 MHz (Boost Clock)/up to 2760 MHz (Game Clock), Default mode: up to 3310 MHz (Boost Clock)/up to 2740 MHz (Game Clock)
Stream Processors2048
Memory Speed20 Gbps
Memory Interface128-bit
ResolutionDigital Max Resolution 7680 x 4320

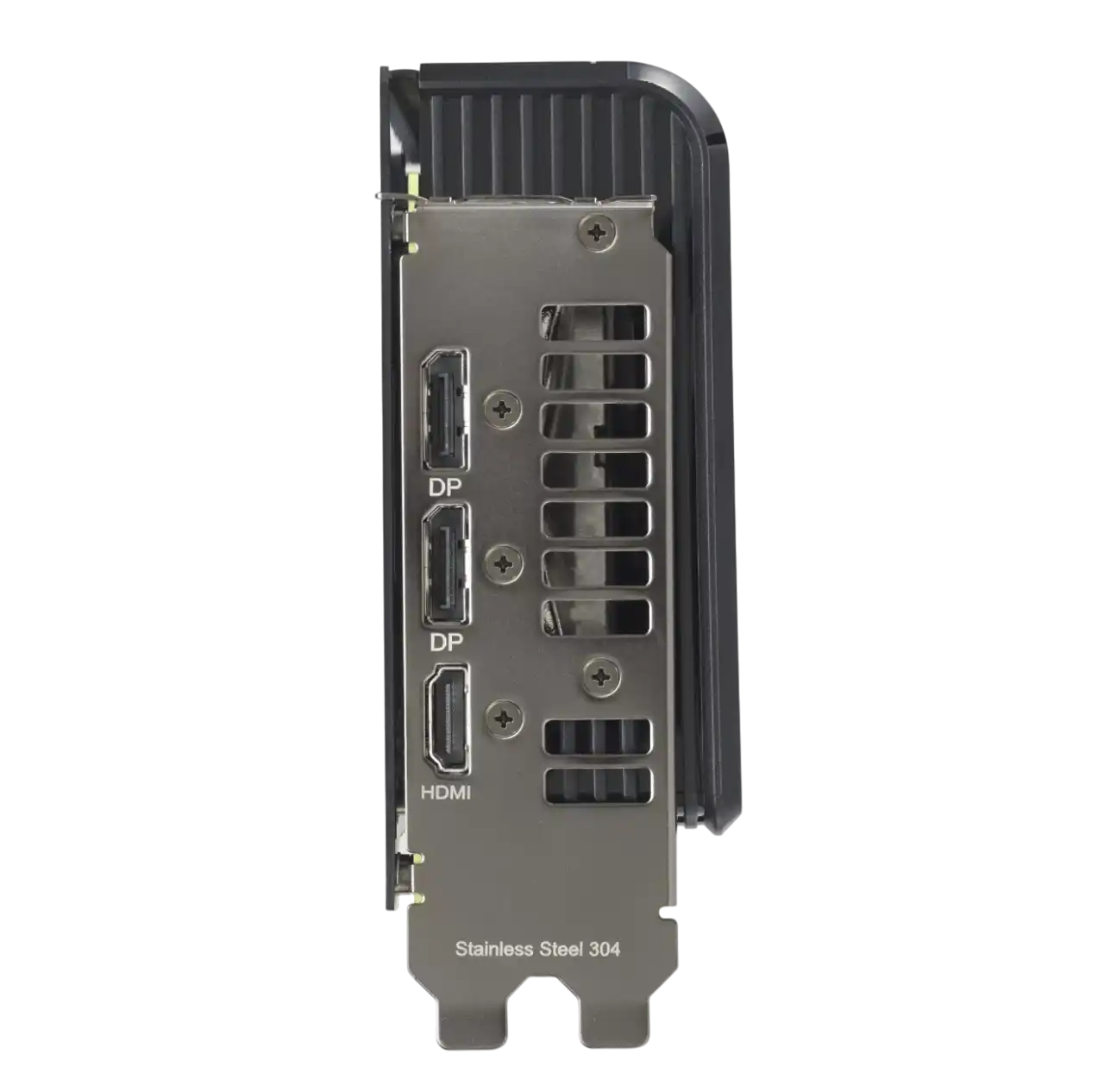

InterfaceYes x 1 (Native HDMI 2.1b), Yes x 2 (Native DisplayPort 2.1a), HDCP Support Yes (2.3)
Maximum Display Support3
NVlink/ Crossfire SupportNo
Accessories1 x Thank you card, 1 x Speedsetup Manual
SoftwareASUS GPU Tweak III & Drivers: please download all software from the support site.
Dimensions304 x 126 x 50mm
Recommended PSU500W
Power Connectors1 x 8-pin
Slot2.5 Slot

Product details

Note:

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
